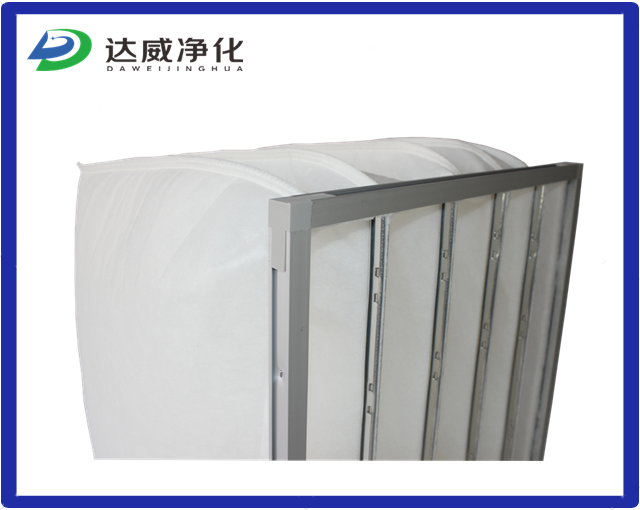

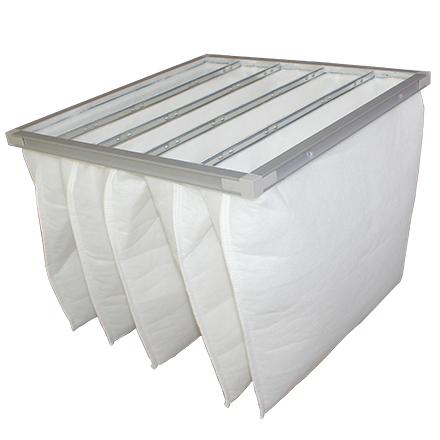

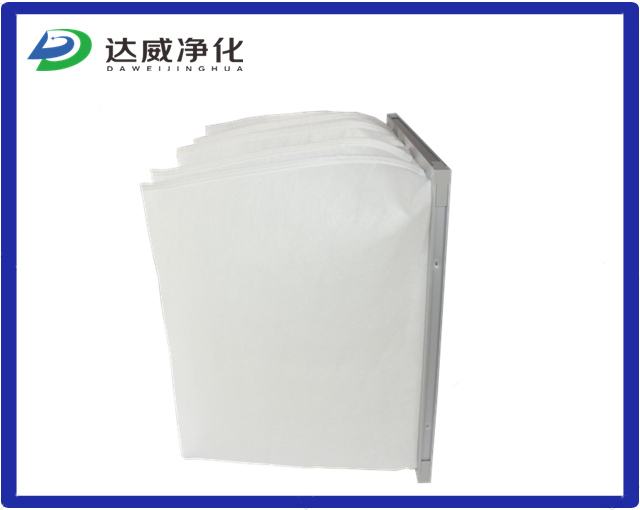

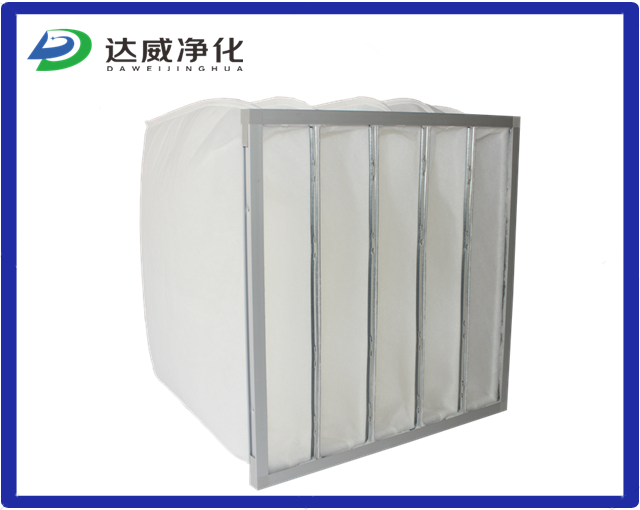

Primary effect bag filter

The initial effect bag filter is used for the first filtration of fresh air in air conditioning systems, mainly filtering suspended particles and various foreign objects (such as dust, pollen, mites, sand and dust, spray paint, fiber dust, willow catkins,

frame	Aluminum frame, galvanized frame, stainless steel frame, plastic frame
filter material	High quality polyester fiber filter cotton
Filtration efficiency	G3/G4/M5
Internal support	Galvanized frame/stainless steel frame (riveted/buckle strip)
maximum operating temperature	90℃
Rated wind speed	2.5m/s

Product features

● The metal frame structure is sturdy and easy to install

Metal frame with metal inner frame as support, sturdy structure, easy to install and disassemble. The filter bag and inner frame are fixed using perforated riveting or metal strip crimping technology.

● High quality fluffy fiber filter cotton, with special selection of filter media for different requirements

High quality polyester fiber filter material, made using step-by-step encryption technology, with good filtration performance. The filter bag adopts five line stitching or microwave hot melt edge sealing technology. The filter bag and supporting frame adopt a rigid connection structure to ensure the sealing and operational reliability of the filter bag, and prevent secondary dust production.

● High dust holding capacity, low resistance, long service life

The filter bags all adopt a standard V-shaped structure that conforms to the airflow, with strong airflow stability, ensuring the effective utilization of the filtering medium and ensuring the filtering effect. Can be cleaned and reused, with a long service life.

Product parameters

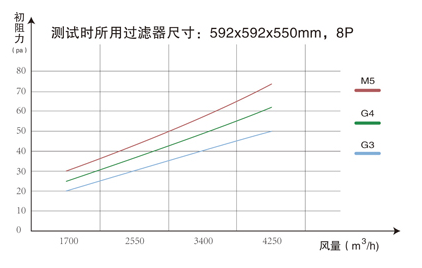

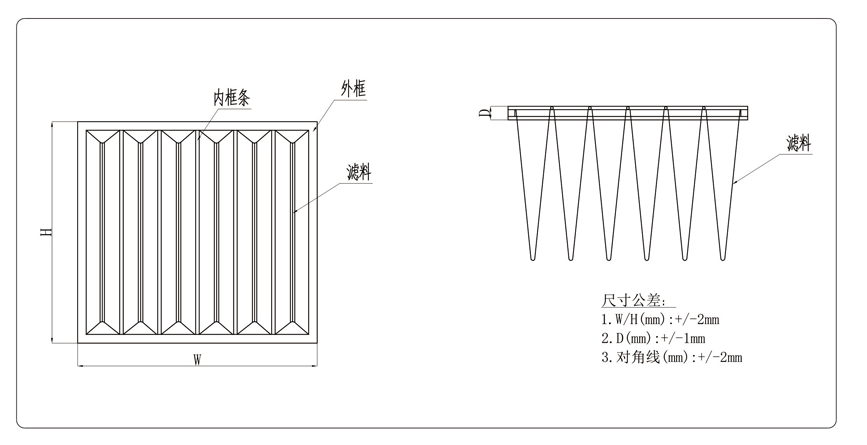

Nominal size	External dimensions	Number of bags	Rated air volume	Initial resistance at different efficiencies (Pa)	建议终阻力
WHD (inch)	WHD（mm）	individual	(m³/h)	G3	G4	M5	（Pa）
242422	592592550	eight	3400	40	49	60	250
202422	490592550	six	2850	40	49	60	250
202022	490490550	five	2300	42	50	60	250
122422	287592550	four	1700	42	50	60	250
242415	592592381	eight	3400	45	58	70	250
202015	490490381	five	2300	46	60	70	250
122415	287592381	four	1700	46	60	70	250
202415	490592381	six	2850	46	60	70	250

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements

ASHRAE52.2	EN779
MERV	G1
MERV2-4	G2
MERV5-6	G3
MERV7-9	G4
MERV10	M5
