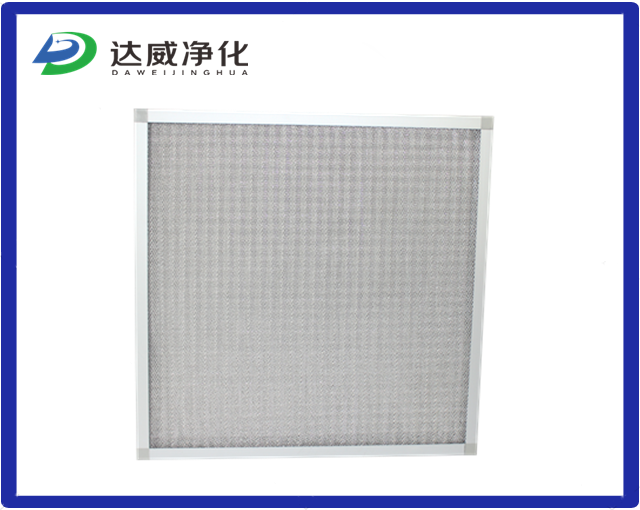

The coarse dust filtration system for general building air conditioning. Primary filtration of industrial grade air ventilation equipment.

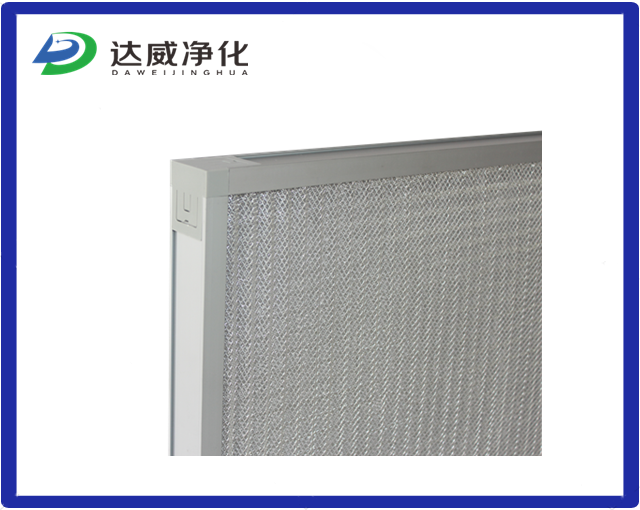

| frame | Aluminum alloy frame/Galvanized frame/Stainless steel frame |

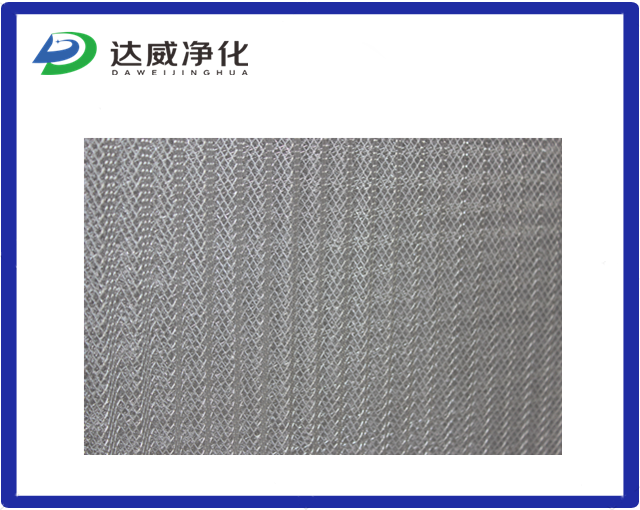

| filter material | high-strength aluminum alloy mesh/stainless steel mesh |
| Filtration efficiency | G2/G3 |
| Applicable conditions | ≤300°C |
| Rated wind speed | 0.25m/s |
| Product application | ●Primary filtration of industrial grade air ventilation equipment ● Spray painting room filtration in the automotive assembly workshop ●Equipped with an electrostatic filter ● Coarse dust filtration system for general building air conditioning ●High strength and high-temperature resistant ventilation system Oil/grease separator, range hood |

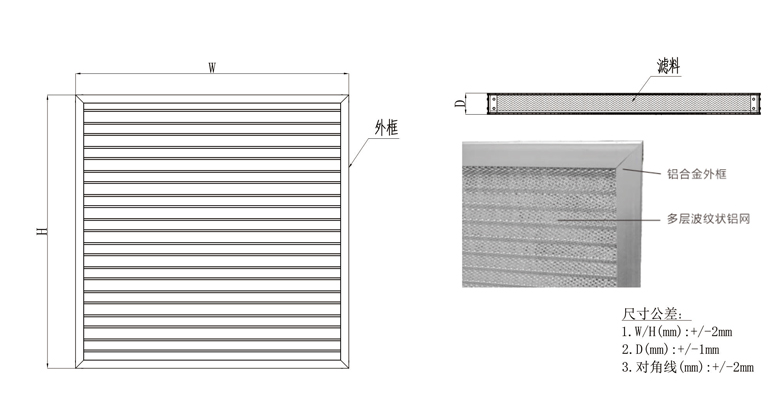

| External dimensions | Rated air volume | Filtration efficiency | Rated initial resistance |
| L*W*D （mm） | (m³/h) | EN779 | （Pa） |
| 290*595*25 | 1700 | G2 | 20 |
| 595*595*25 | 3400 | G2 | 20 |
| 290*595*46 | 1700 | G3 | 40 |
| 595*595*46 | 3400 | G3 | 40 |

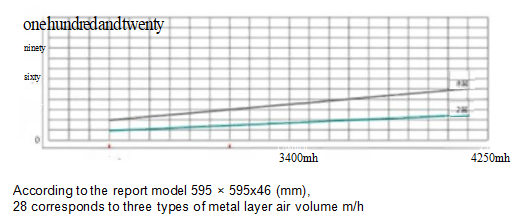

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements
| ASHRAE52.2 | EN779 |
| MERV | G1 |
| MERV2-4 | G2 |
| MERV5-6 | G3 |
