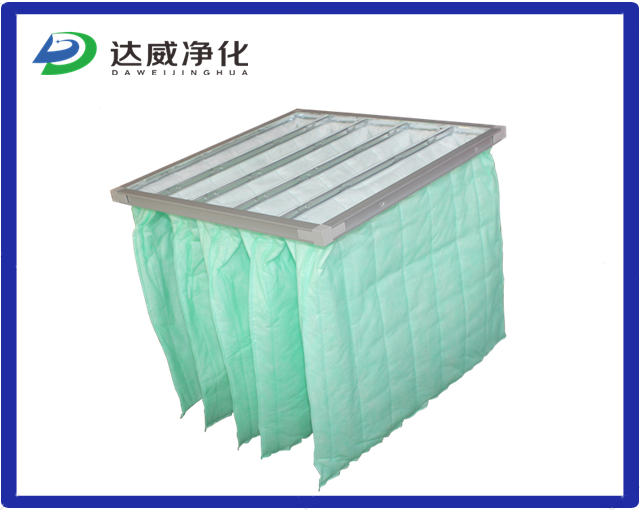

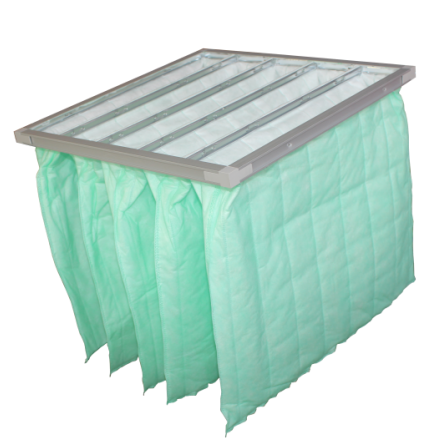

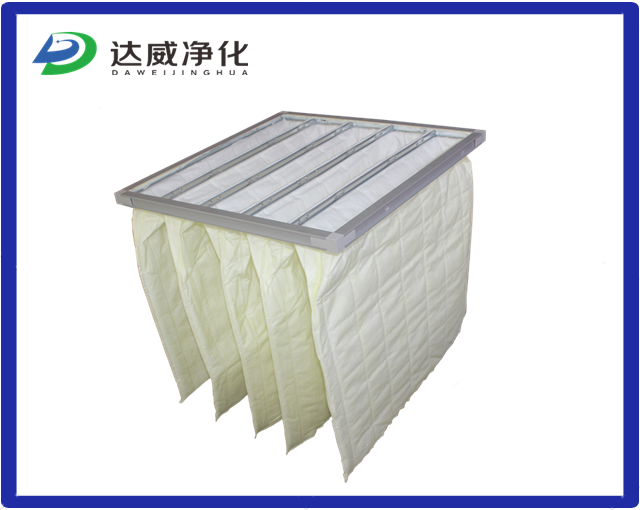

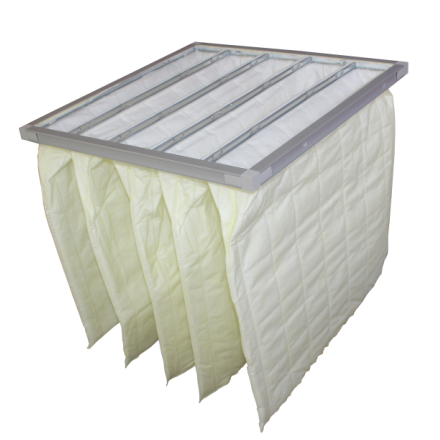

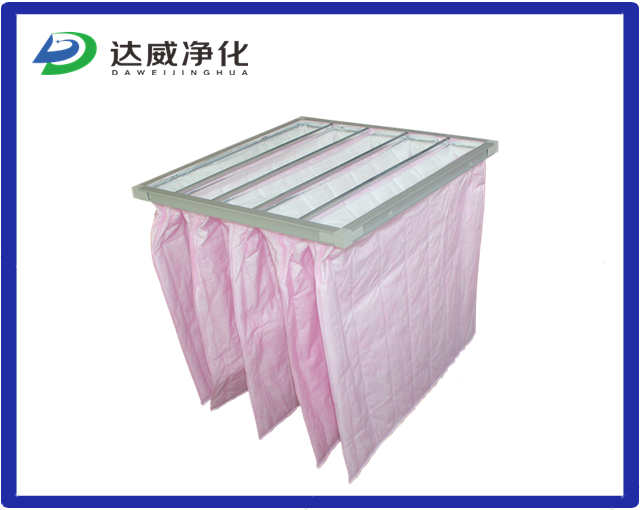

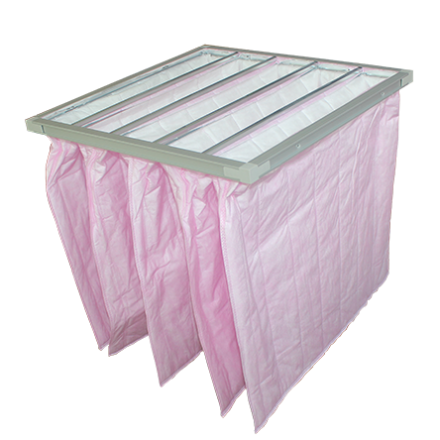

Chemical fiber bag filter

Medium efficiency bag filters are used for end filtration in general air conditioning systems and pre filtration of high-efficiency filters in purification air conditioning systems. Mainly used for filtering suspended particles above 0.5 μ m (such as most

Frame Galvanized frame/Aluminum alloy frame/Stainless steel frame
Filter material two-component filter bag
efficiency M5/M6/F7/F8/F9
连续运行温度 ≤60 ℃(140°F)

Product features

01

The filter bag is made of high-performance non-woven fabric using hot melt technology to avoid discomfort caused by old-fashioned fiberglass materials to the human body.

02

The filter material contains electrostatic fibers, which have a particularly good dust filtration effect, high dust capture rate, high permeability, high dust load, and high service life.

03

The filter bags are fixed with metal buckles or perforated rivets to prevent them from breaking due to friction caused by high wind speeds.

04

The filter bag has multiple inner liners to prevent excessive expansion of the filter bag due to wind pressure, which reduces the effective filtration area and efficiency. Each group of filter bags has a positioning air duct to ensure the filtration effect.

Product Details

Product parameters

Actual dimensions Number of bags Filter material Rated air volume Rated initial resistance Suggested final resistance
L长*W宽*D高 (mm) pieces (m³/h) M5 M6 F7 F8 F9 (pa)
592*592*635 8 6.60 3400 55 58 90 95 125 (M5/M6)≤250pa (F7/F8/F9)≤450pa
490*592*635 6 4.94 2850 55 58 90 95 125 (M5/M6)≤250pa (F7/F8/F9)≤450pa
490*490*635 5 3.50 2300 55 58 90 95 125 (M5/M6)≤250pa (F7/F8/F9)≤450pa
287*592*635 4 3.30 1700 55 58 90 95 125 (M5/M6)≤250pa (F7/F8/F9)≤450pa
592*592*550 8 5.68 3400 60 65 100 115 135 (M5/M6)≤250pa (F7/F8/F9)≤450pa
490*592*550 6 4.26 2850 60 65 100 115 135 (M5/M6)≤250pa (F7/F8/F9)≤450pa
490*490*550 5 3.02 2300 60 65 100 115 135 (M5/M6)≤250pa (F7/F8/F9)≤450pa
287*592*550 4 2.84 1700 60 65 100 115 135 (M5/M6)≤250pa (F7/F8/F9)≤450pa
592*592*381 8 3.86 3400 70 75 110 120 145 (M5/M6)≤250pa (F7/F8/F9)≤450pa
490*592*381 6 2.90 2850 70 75 110 120 145 (M5/M6)≤250pa (F7/F8/F9)≤450pa
490*490*381 5 2.06 2300 70 75 110 120 145 (M5/M6)≤250pa (F7/F8/F9)≤450pa
287*592*381 4 1.94 1700 70 75 110 120 145 (M5/M6)≤250pa (F7/F8/F9)≤450pa

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements

ASHRAE52.2/EN779

ASHRAE52.2 EN779
MERV G1
MERV2-4 G2
MERV5-6 G3
MERV7-9 G4
MERV10 M5
MERV11-12 M6
MERV13 F7
MERV14 F8
MERV15 F9

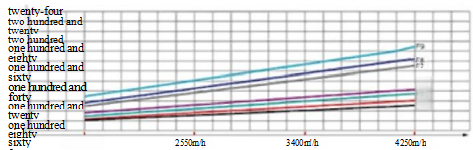

Initial resistance air flow relationship curve graph

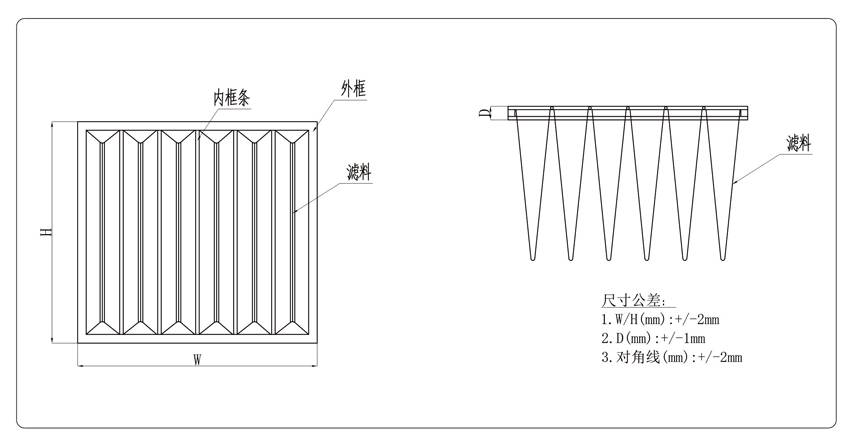

Drawing
