Widely used for HVAC air intake filtration in industrial, commercial, and large residential buildings. In the European and American markets, it is the preferred filter material for industries such as electronics factories (especially chip factories and LC

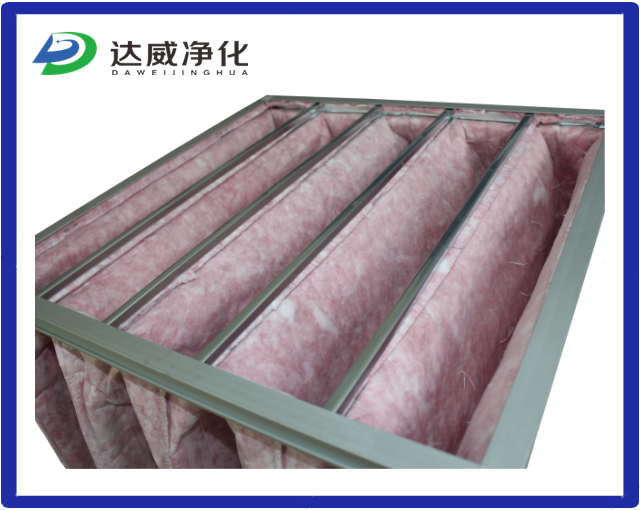

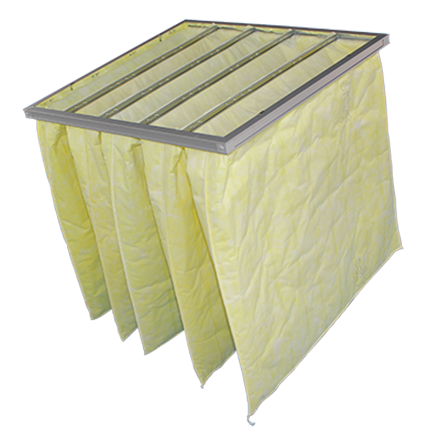

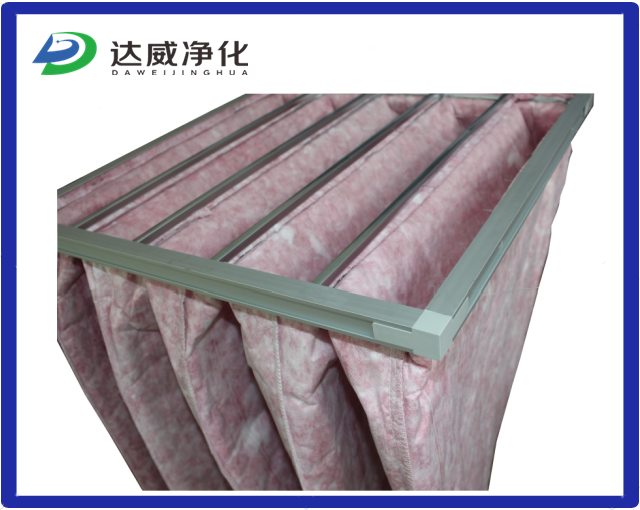

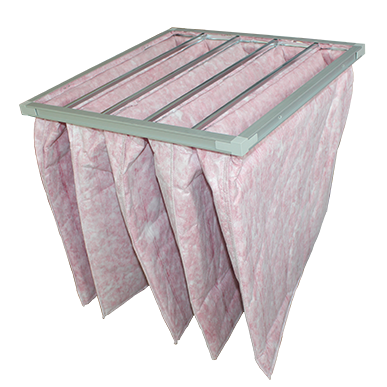

| Frame | Aluminum alloy frame/Stainless steel frame/Galvanized frame |
| Filter Material | Fiberglass filter bag |
| efficiency | M6/F7/F8/F9 |
| Continuous operating temperature | ≤80℃ |

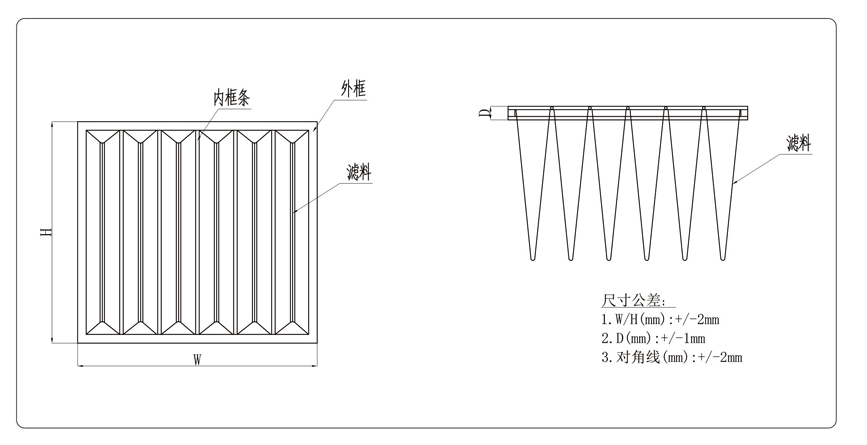

| Actual dimensions | Number of bags | Filter material area | efficiency | Rated air volume | Initial resistance at different air volumes | |||
| W * H * D (mm) | pieces | m ² | (EN779) | m³/h | 50% | 75% | 100% | 125% |
| 592*592*600 | 8 | M6 | 3400 | 43 | 72 | 110 | 154 | |
| 490*592*600 | 6 | 4.5 | M6 | 2800 | 43 | 72 | 110 | 154 |
| 287*592*600 | 4 | 3.1 | M6 | 1700 | 43 | 72 | 110 | 154 |
| 490*490*600 | 6 | 3.8 | M6 | 2380 | 43 | 72 | 110 | 154 |
| 592*592*600 | 8 | 6 | F7 | 3400 | 58 | 72 | 138 | 191 |
| 490*592*600 | 6 | 4.5 | F7 | 2800 | 58 | 93 | 138 | 191 |
| 287*592*600 | 4 | 3.1 | F7 | 1700 | 58 | 93 | 138 | 191 |
| 490*490*600 | 6 | 3.8 | F7 | 2380 | 58 | 93 | 138 | 191 |
| 592*592*600 | 8 | 6 | F8 | 3400 | 80 | 120 | 169 | 224 |
| 490*592*600 | 6 | 4.5 | F8 | 2800 | 80 | 120 | 169 | 224 |
| 287*592*600 | 4 | 3.1 | F8 | 1700 | 80 | 120 | 169 | 224 |
| 490*490*600 | 6 | 3.8 | F8 | 2380 | 80 | 120 | 169 | 224 |

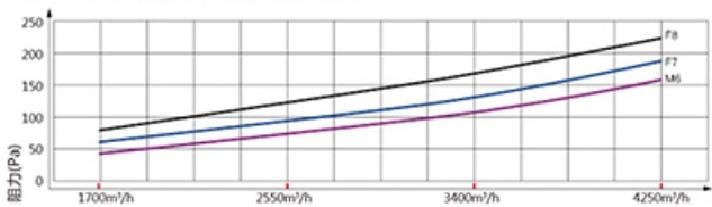

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements
| ASHRAE52.2 | EN779 |
| MERV11-12 | M6 |
| MERV13 | F7 |
| MERV14 | F8 |
| MERV15 | F9 |
