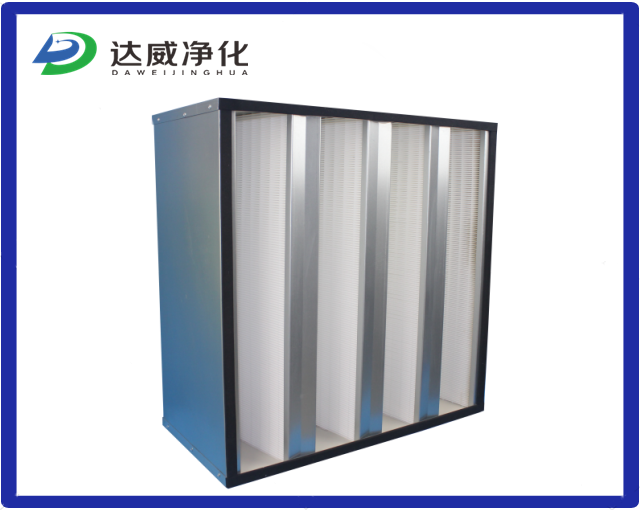

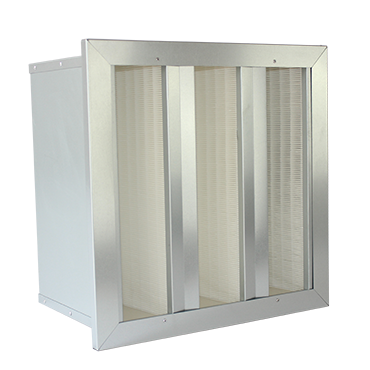

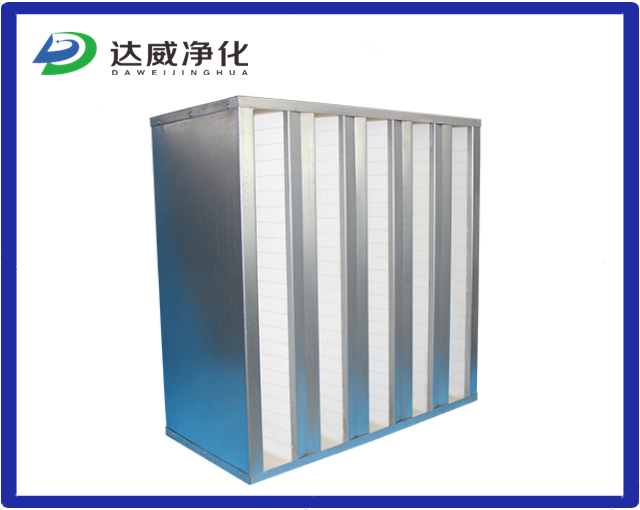

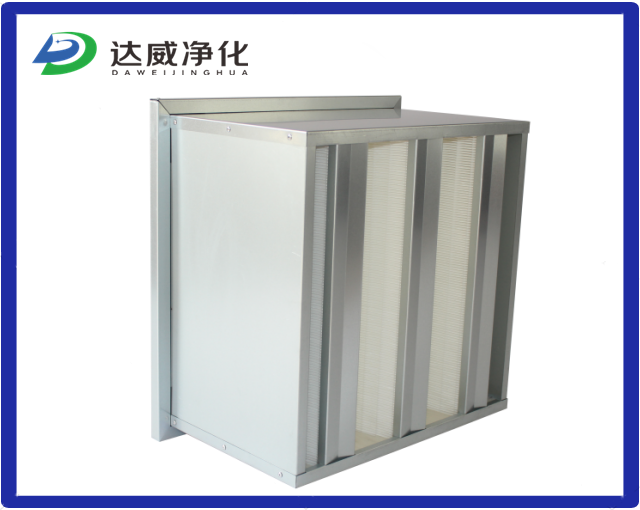

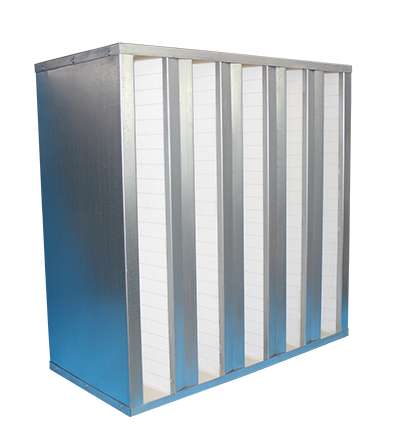

Box type V-shaped high air volume filter

Using ultra-fine fiberglass filter paper, it is made by combining multiple non partition filter elements and strictly sealing them, with efficiency covering F7 to H13. It has the characteristics of large filtration area, low resistance, long service life

Outer frame	Galvanized frame/stainless steel/aluminum frame
sealant	PU polyurethane adhesive
sealing rubber strip	EVA/PU
partition	Hot melt adhesive
Optional thickness (mm)	220/292, etc
Using the highest temperature	70℃

Product features

01

Metal frame, sturdy structure, ensuring good performance under turbulent flow.

02

Compact structure, capable of installing flanges, easy to install and maintain

03

V-shaped low voltage loss design, with the same cross-sectional area, provides greater ventilation and is more suitable for installing ventilation and air conditioning systems with limited space.

Product parameters

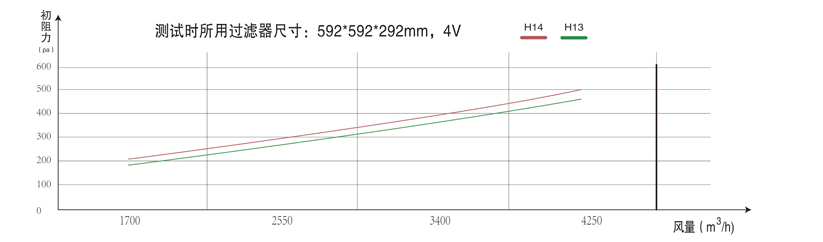

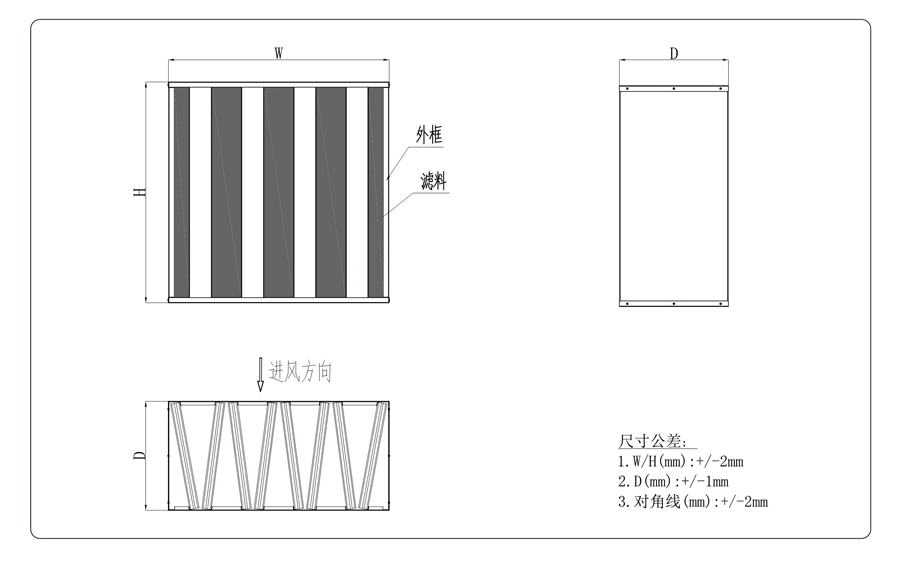

External dimensions	Frame body	filter area	Rated air volume	Rated initial resistance at different efficiencies	Suggested final resistance
L长W宽D高（mm）		㎡	m³/h	F8	E10	H13	H14	（Pa）
	2V	5.4	850	110	180	220	280	Initial resistance 2-2.5 times
305610292	2v	10.8	1700	110	180	220	280	Initial resistance 2-2.5 times
610305292	4V	11	1700	110	180	220	280	Initial resistance 2-2.5 times
610610292	4V	22	3400	110	180	220	280	Initial resistance 2-2.5 times

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements

ASHRAE52.2/EN779 compare

ASHRAE52.2	EN779
MERV14	F8
MERV15	F9-E10
MERV16	E11-E12
MERV17-18	H13
MERV19-20	H14
