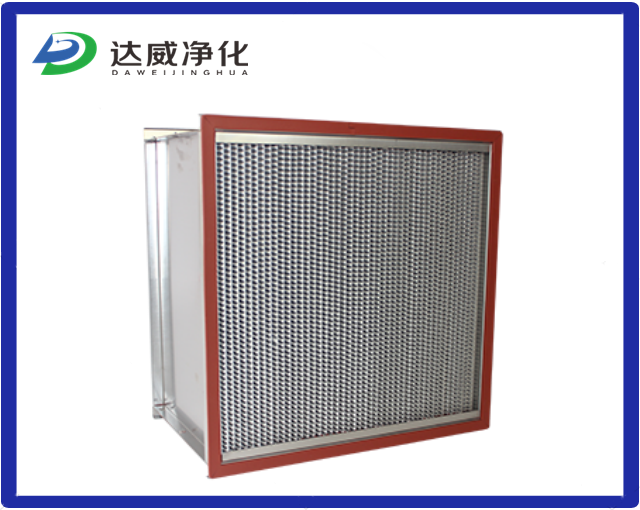

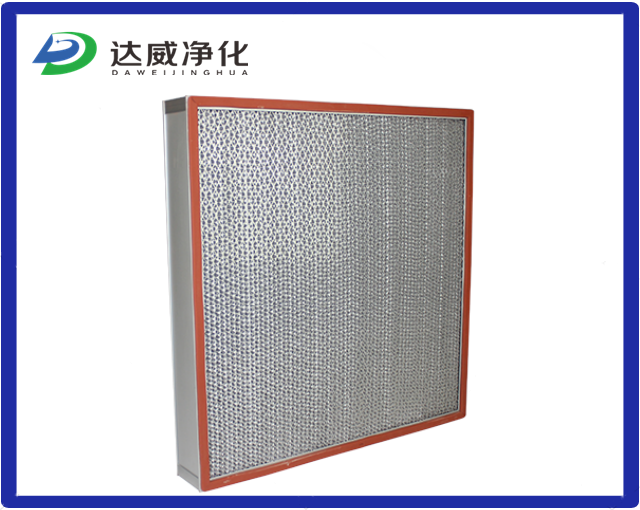

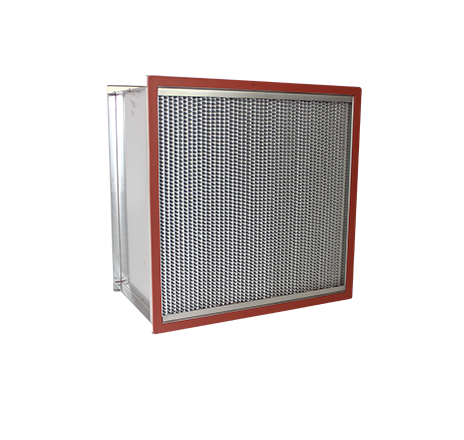

High temperature resistant and efficient filter

1. Air filters for general hot air high-temperature ovens and high-temperature ovens in painting workshops. 2. Suitable for purification equipment and systems with high temperature requirements such as ultra clean ovens and sterilization cabinets. 3. Hi

Frame	Galvanized sheet/aluminum sheet/stainless steel sheet
Isolation seal	aluminum foil
filter material	Ultra fine glass fiber filter paper
sealant	High temperature resistant sealant
Maximum operating temperature	≤250℃，350℃，450℃
Sealing strip	High temperature resistant silicone strip/fiberglass sealing strip

Product features

01

Under high temperature conditions, the filtration performance is stable.

02

Using our specially developed high-temperature sealant, we ensure that the filter operates normally during the temperature rise and fall process, without any issues such as filter paper breakage or sealant detachment from the casing. Extended the service life of the filter and reduced customer usage costs.

03

304 stainless steel frame, sturdy structure, does not deform under high temperature environment.

Product parameters

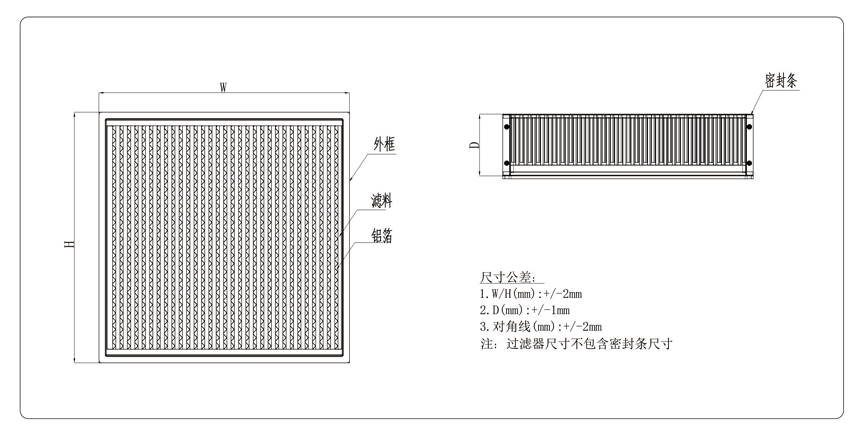

External dimensions	Rated air volume	face velocity	Rated initial resistance at different efficiencies (pa)	Suggested final resistance
L长W宽D高（mm）	(m³/h)	m/s	H13	H14	（Pa）
30561080	200	0.36	249	280	Initial resistance 2~2.5 times
61061080	420	0.36	249	280	Initial resistance 2~2.5 times
305610150	550	1.0	249	280	Initial resistance 2~2.5 times
610610150	1170	1.0	249	280	Initial resistance 2~2.5 times
305610220	850	1.55	249	280	Initial resistance 2~2.5 times
610610220	1820	1.55	249	280	Initial resistance 2~2.5 times
305610292G	1120	2.0	249	280	Initial resistance 2~2.5 times
610610292	2400	2.0	249	280	Initial resistance 2~2.5 times

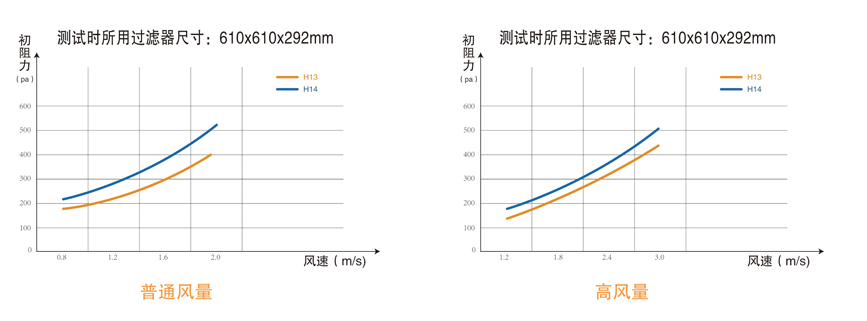

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements

ASHRAE52.2	EN779
MERV11-12	M6
MERV13	F7
MERV14	F8
MERV15	F9
MERV17-18	H13
MERV19	H14
