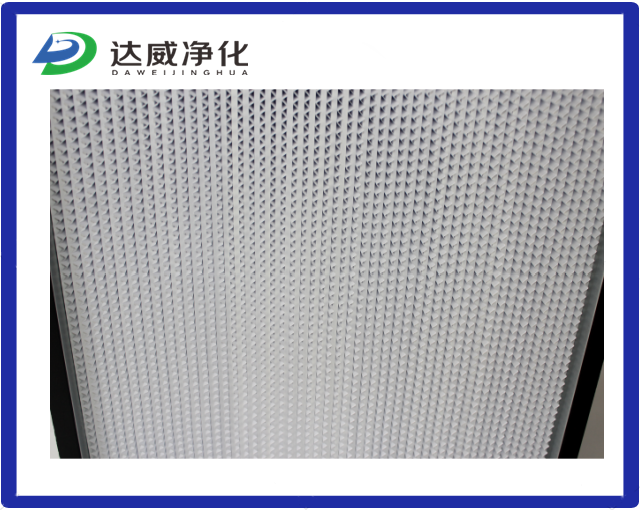

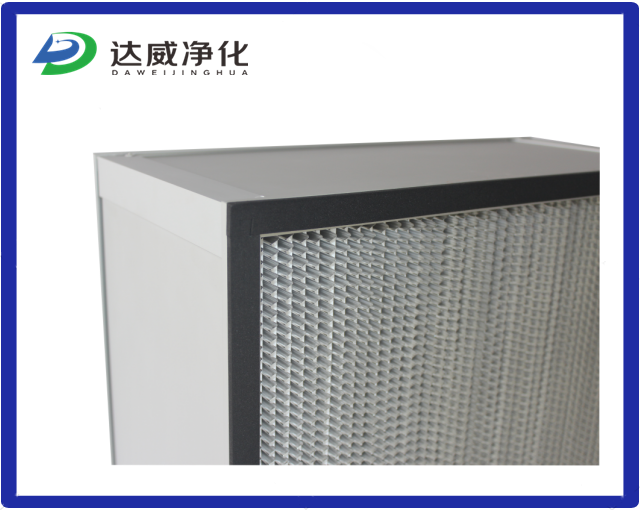

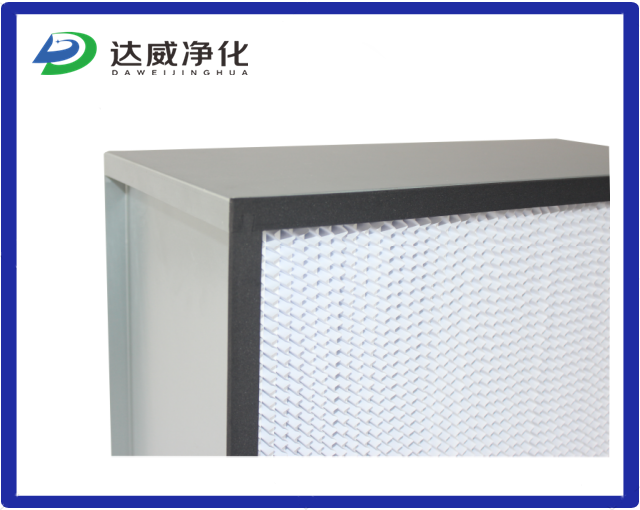

deep-pleat high efficiency filter

Suitable for various local purification equipment, widely used in the air conditioning end air supply of dust-free purification workshops in industries such as optical electronics, LCD manufacturing, biomedicine, precision instruments, beverages and food,

frame	Galvanized frame/aluminum frame/wooden frame/stainless steel frame
filter material	Ultra fine fiberglass filter paper

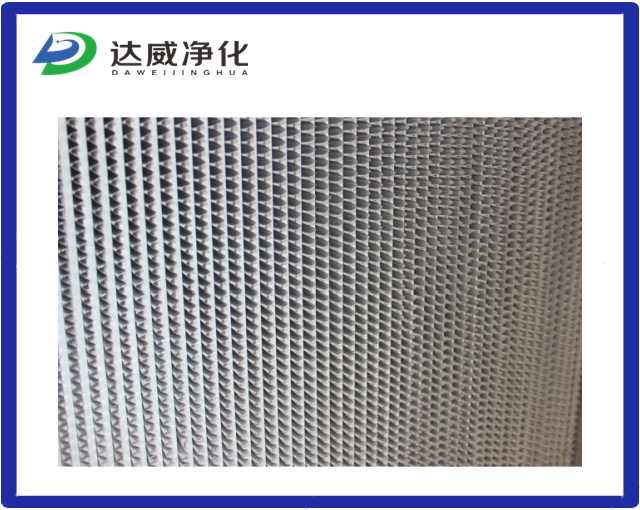

partition	Offset paper/aluminum foil
sealant	PU two-component polyurethane adhesive
Optional thickness	80/90/96/120/150/220/292mm, etc
Using the highest temperature	Offset paper at 50 ℃; Aluminum foil at 100 ℃

Product features

01

The filter materials are supported by partitions to ensure their strength and reduce filter resistance.

02

The filter paper and frame are sealed with high-quality PU adhesive to ensure frame strength and no leakage.

03

All filters undergo leakage testing before leaving the factory to ensure that they are leak free and qualified for delivery.

04

The structure is reasonable, and the width of the partition can be changed according to different air volume and resistance requirements

05

The frame can be provided with no flange, single flange, and double flange, with a flange width of 20mm

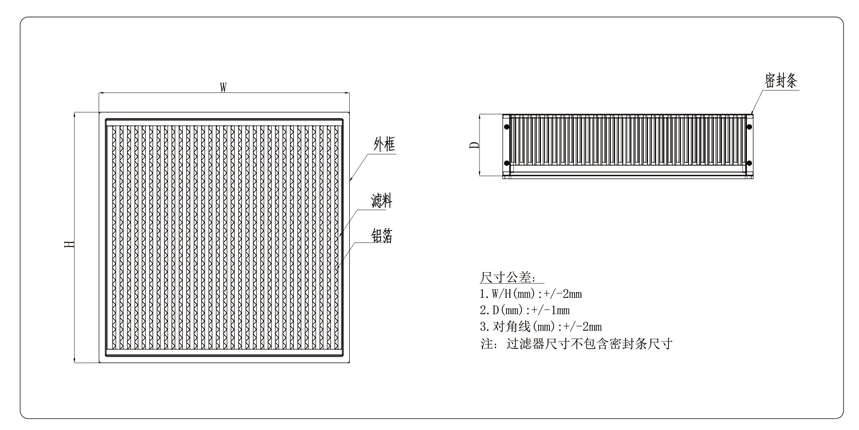

Product parameters

Actual size	Rated air volume	Test wind speed	Filter Level	initial resistance	Suggested final resistance
WHD（mm）	(m³/h)	m/s	EN779	（pa）	（pa）
320320220	500	1	H13/H14	250/280	500
484484220	1000	1.5	H13/H14	250/280	500
630630220	1500	1.5	H13/H14	250/280	500
305610292	1700	2.5	H13/H14	250/280	500
610610292	3400	2.5	H13/H14	250/280	500

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements
