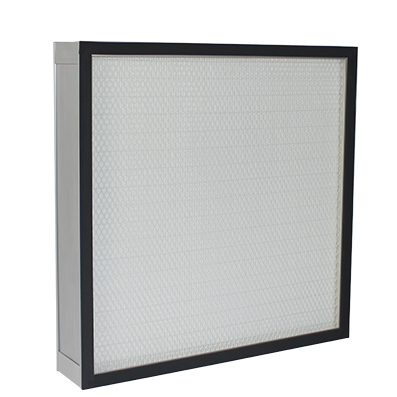

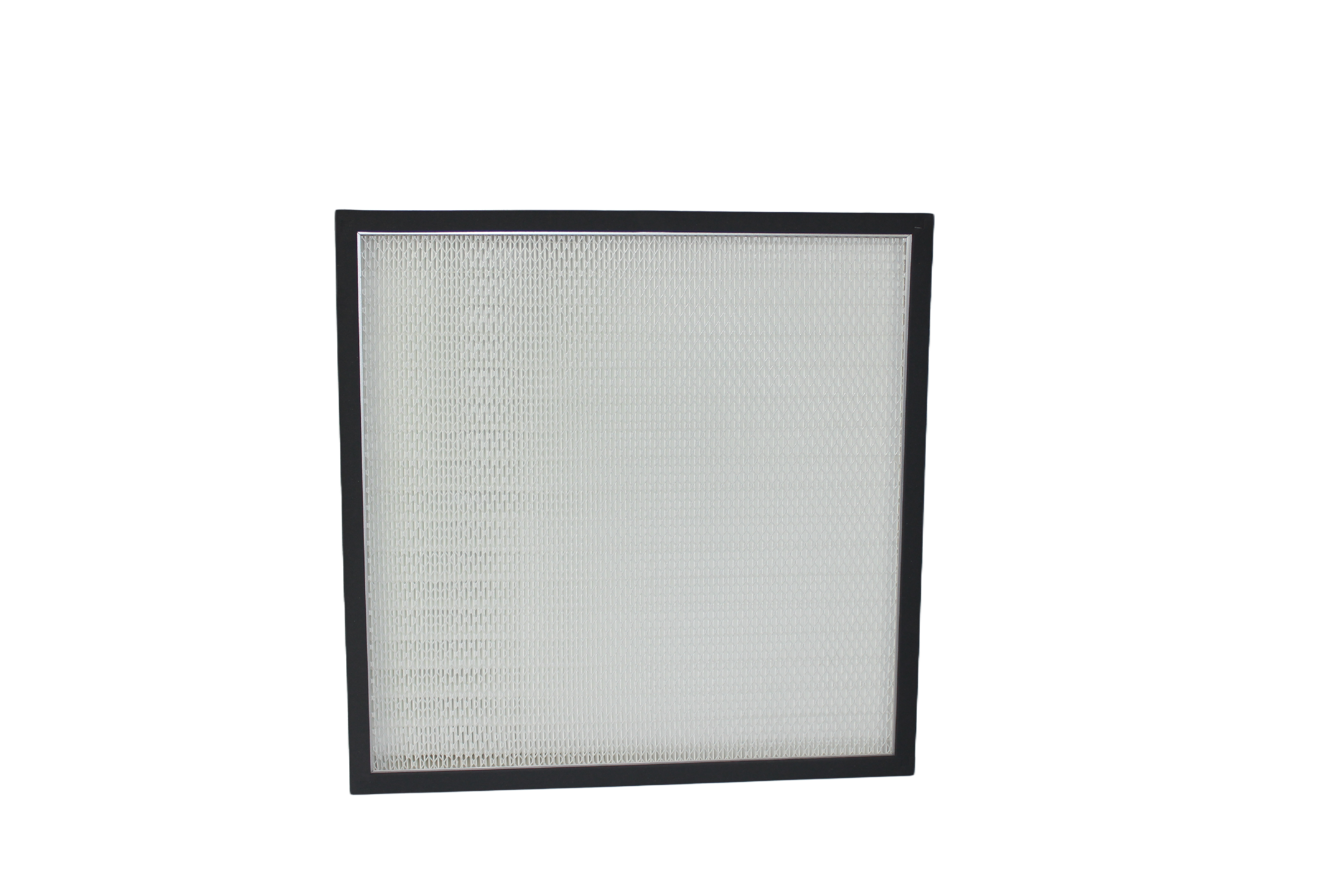

No partition high-efficiency filter

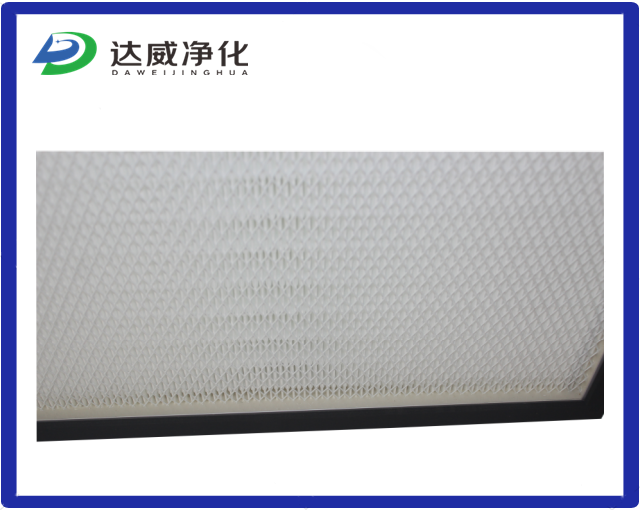

Using ultra-fine glass fiber paper or PP chemical fiber filter paper as the medium, it is folded by a fully automatic non partition filter production line machine, separated by a hot melt adhesive line, and equipped with diamond shaped spray protection ne

Framework	Anodized aluminum material
Filter material	Ultra fine glass fiber filter paper

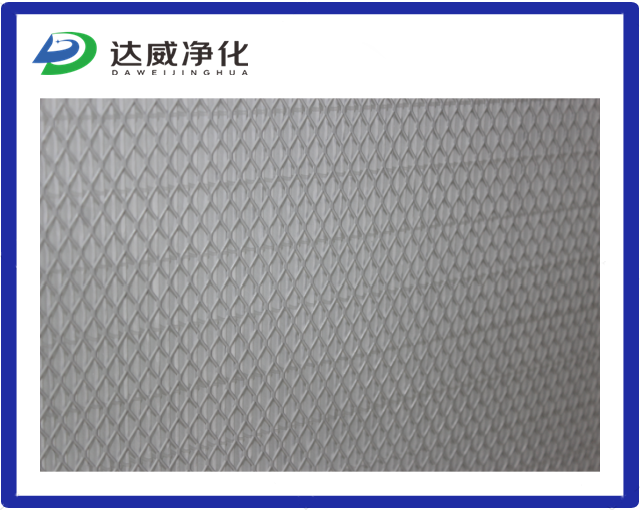

Face protection net	baked paint steel plate net
efficiency	F9/E11/H13/H14/U15
Sealing glue	PU two-component polyurethane adhesive
Sealing strip	EVA/polyurethane foam sealant
Outer frame thickness	46/50/69/90/96mm等
Using the highest temperature	70℃

Product features

01

Non partition pleated filter element greatly reduces resistance and improves filtration efficiency

02

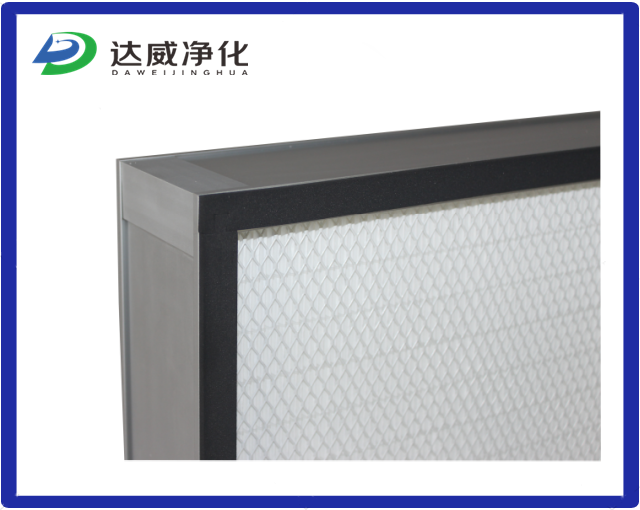

Aluminum alloy frame, double-sided protective mesh, ensuring that the filter is not easily damaged during transportation and installation

03

The raw materials used have extremely low chemical gas generation characteristics, meeting the strict requirements of certain special industries

04

Each filter undergoes strict leakage testing before leaving the factory to ensure that the filter meets high-quality standards

Product parameters

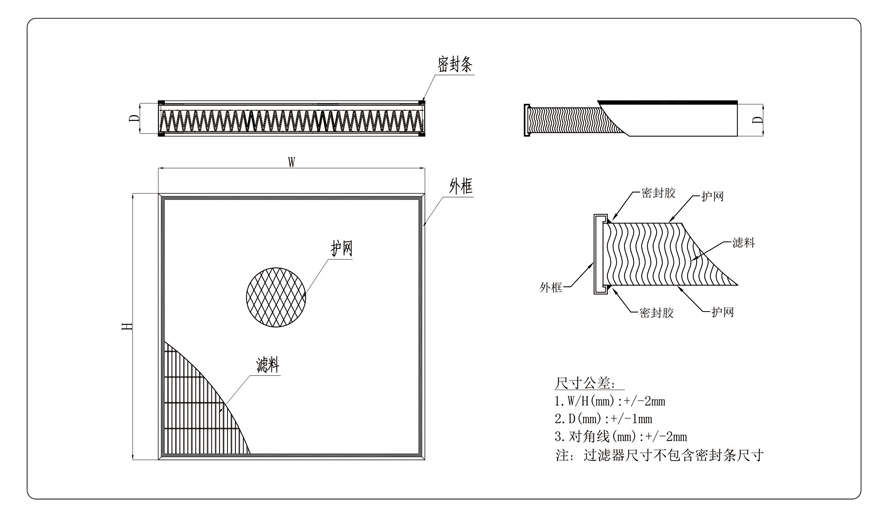

Dimensions	Surface wind speed	Rated air volume	Initial pressure drop	Suggested final resistance
WHD（mm）	(m/s)	m³/h	E10	E11	E12	H13	H14	(Pa)
61061050	1.2	1600	120	180	240	250	270	500
61091550	1.2	2400	120	180	240	250	270	500
117057050	1.2	2800	120	180	240	250	270	500
61061070	1.2	1600	85	145	205	220	240	500
61091570	1.2	2400	85	145	205	220	240	500
117057070	1.2	2800	85	145	205	220	240	500

Remarks: The resistance values are different at different wind speeds. Special dimensions and specifications can be customized according to customer requirements

ASHRAE52.2/EN779

ASHRAE52.2	EN779
MERV14	F8
MERV15	F9/E10
MERV16	E11/E12
MERV17	H13
MERV18-19	H14
