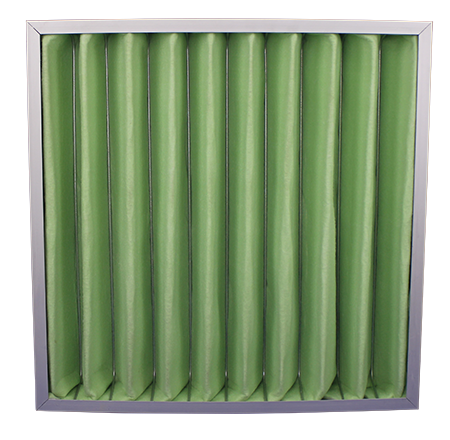

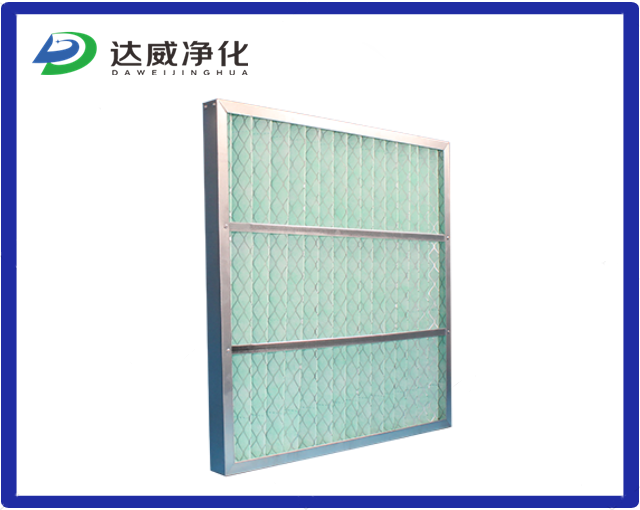

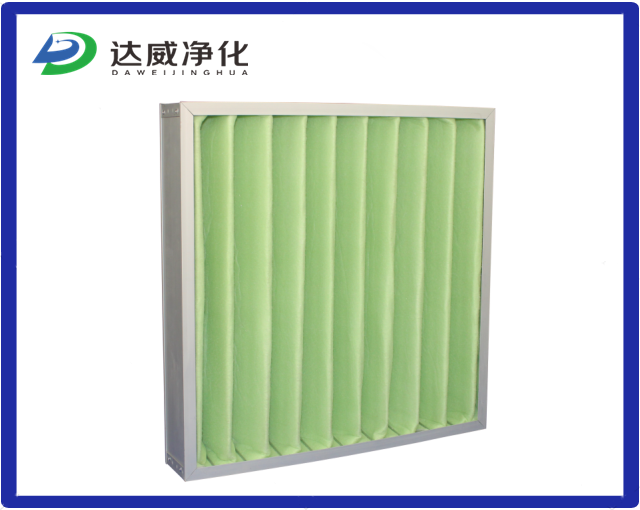

Medium efficiency plate filters are suitable for intermediate filtration in ventilation systems, mainly used to filter sub micron (<1 μ m) dust particles and various suspended solids.
| frame | Aluminum frame/galvanized frame/stainless steel |

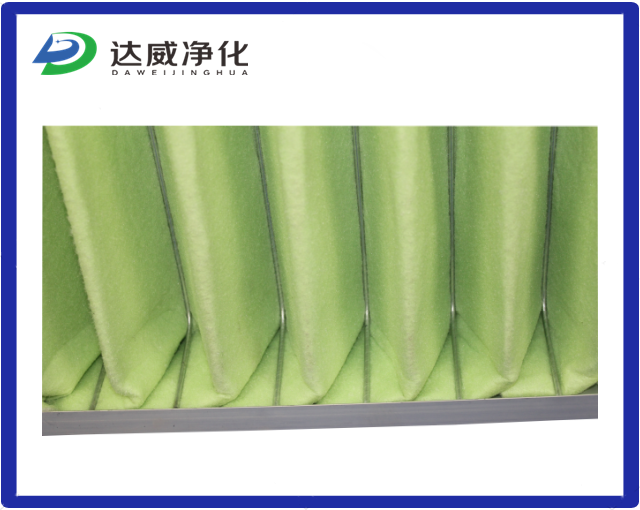

| filter material | Laying non-woven fabric/green and white needle punched cotton |
| Filtration efficiency | M5/M6/F7/F8 |
| Continuous operating temperature | ≤70℃ |

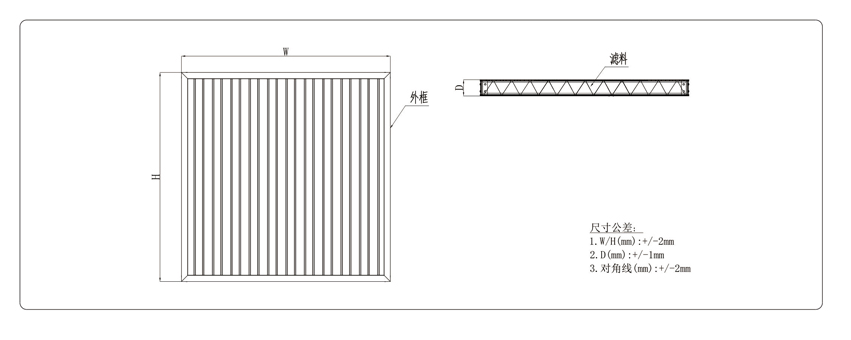

| External dimensions | Rated air volume | Filtration efficiency | initial resistance | Suggested final resistance |
备注：不同风速下，阻力值不同。特殊尺寸规格可依据客户要求定制
| ASHRAE52.2 | EN779 |
| MERV9-10 | M5 |
| MERV11-12 | M6 |
| MERV13 | F7 |
| MERV14 | F8 |
| MERV15 | F9 |
